mudflap | nose | electrical system | rear bracket

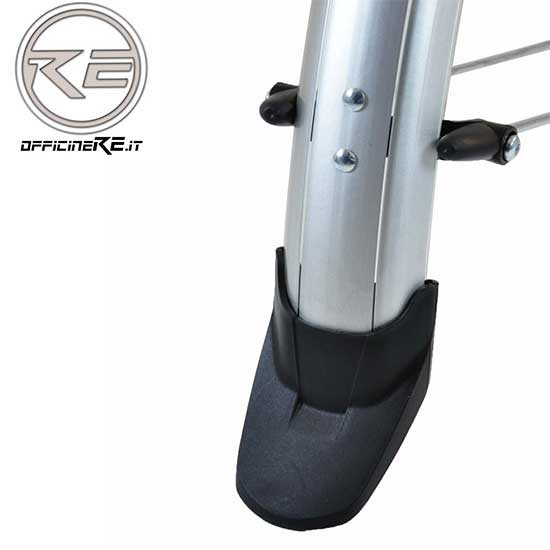

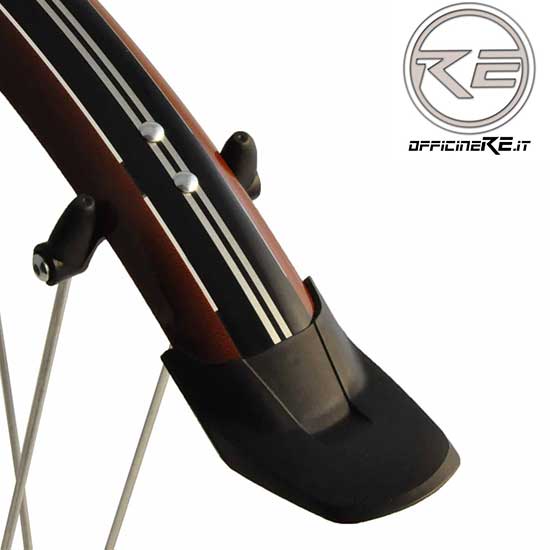

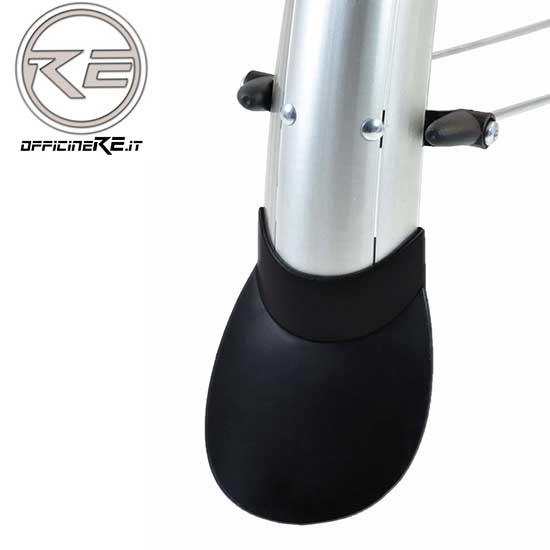

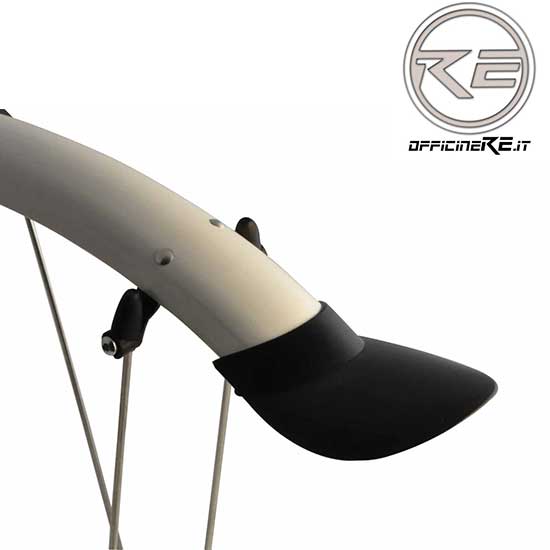

mudflap

Type A - PLS45

EXTRUDED MUDGARD

Type C - PLS53

Type B - PLS45

Available for PLS45 profile. Already assembled, colour carbon black.

Click on images above for more detailed pictures.

Available for PLS45 profile. Already assembled, colour carbon black.

Click on images above for more detailed pictures.

Available for PLS53 profile. Already assembled, colour carbon black.

Click on images above for more detailed pictures.

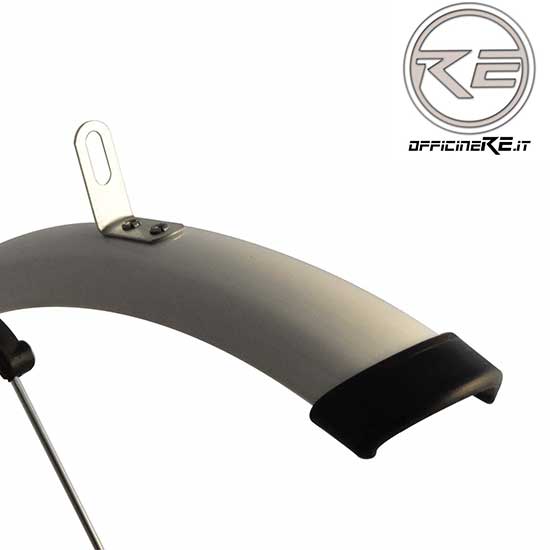

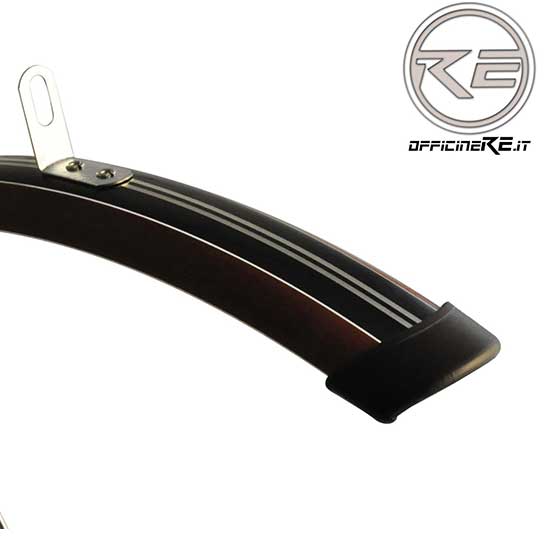

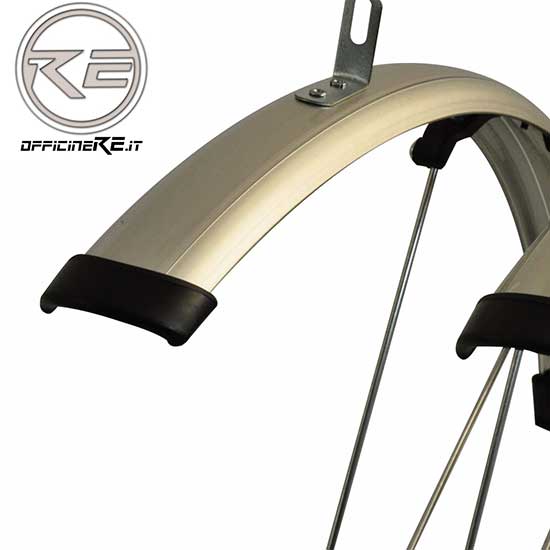

nose

PLS45-PLS53

EXTRUDED MUDGARD

Available for PLS45 and PLS53 profile. Already assembled, colour carbon black.

Click on images for more detailed pictures.

electrical system

EXTRUDED MUDGARD

Click here

Click here

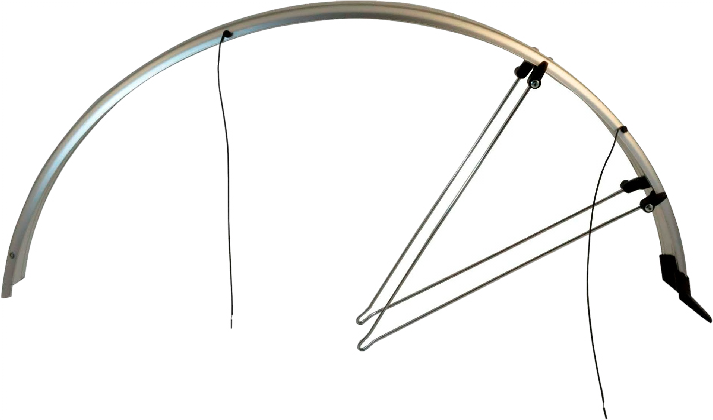

The desing and manifacture of a simplified electrical system for the supply of the tail and front lights, if installed, is very easy thanks to the electrical conduction properties of the aluminium foil inserted into the plastic profile during the extrusion process.

Two ways of cables fastening are available:

- ECO TYPE: direct riveting onto the mudgard profile

- CAP TYPE: eyelet contactor riveted onto the plastic profile and removable plastic cap for wiring fastening

Wiring can be supplied with nude ends or micro-contactors.

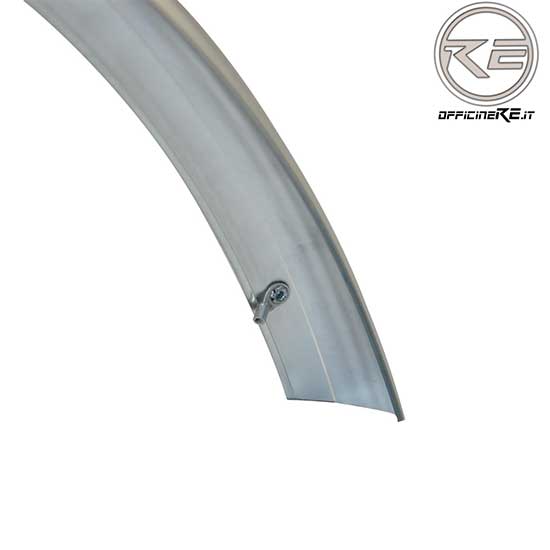

Stainless eyelet riveted onto the mudgard profile, wire fastened with plastic cap.For dinamo and rear light supply, if installed.

CAP TYPE

Stailess eyelet contactor for front light supply, if installed

CAP TYPE

Micro contactor already riveted. For front light supply, if installed.

ECO TYPE

Wire with micro-contactors end already riveted onto the mudgard profile.

ECO TYPE

rear bracket

PLS45-PLS53

EXTRUDED MUDGARD

Available for PLS45 and PLS53 profile. Zinc-plated, not assembled, provide the fixing of the rear mudgard to the bicycle rack as alternative solution to the stays fixing.

Click on images for more detailed pictures.

Micro contactor already riveted. For front light supply, if installed.

MICRO 1

Micro contactor already riveted. For front light supply, if installed.

MICRO 2
